A FAN is a device which is used to supply mechanical energy to the air or gas.
There are two main kinds of industrial fans:
1. Centrifugal fans
2. Axial-flow fans
CENTRIFUGAL FANS :

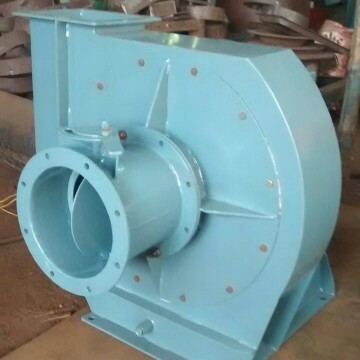

Centrifugal fans consist of a wheel or a rotor mounted on a shaft that rotates in a scroll-shaped housing. Air enters at the eye of the rotor, makes a right-angle turn, and is forced through the blades of the rotor by centrifugal force into the scroll-shaped housing. The centrifugal force imparts static pressure to the air. The diverging shape of the scroll also converts a portion of the velocity pressure into static pressure.
There are three main types of centrifugal fans:
RADIAL BLADE FANS - Radial-blade fans are used for heavy dust loads. Their straight, radial blades do not get clogged with material, and they withstand considerable abrasion. These fans have medium tip speeds and medium noise factors.
BACKWARD CURVED BLADE FANS - Backward-blade fans operate at higher tip speeds and thus are more efficient. Since material may build up on the blades, these fans should be used after a dust collector. Although they are noisier than radial-blade fans, backward-blade fans are commonly used for large-volume dust collection systems because of their higher efficiency.
FORWARD CURVED BLADE FANS - These fans have curved blades that are tipped in the direction of rotation. They have low space requirements, low tip speeds, and a low noise factor. They are usually used against low to moderate static pressures.
When we design fan for client, we consider the following points :
1. Volume required
2. Fan static pressure
3. Type of material to be handled through the fan
(For example, a radial-blade fan should be used with fibrous material or heavy dust loads, and non-sparking construction must be used with explosive or inflammable materials.)
4. Type of drive arrangement, such as direct drive or belt drive
5. Space requirements
6. Noise levels
7. Operating temperature
8. Sufficient size to handle the required volume and pressure with minimum horsepower
9. Need for special coatings or construction when operating in corrosive atmospheres
10. Ability of fan to accommodate small changes in total pressure while maintaining the necessary air volume
11. Need for an outlet damper to control airflow during cold starts
We at SGM TECH provide all types of fans according to client's requirement. We appreciate your interest in fans and request the enquiry for the future transactions.
JAGGERY is a product derived from sugarcane juice by removing water content from it.
There are many types of Jaggery available in market as follows :
1. Liquid Jaggery.
2. Solid Jaggery.
3. Powder Jaggery.
4. Organic Jaggery.
5. Khandsari Sugar.
6. Refined Khandsari Sugar.
7. Ayurvedic Sugar.
We at SGM TECH, design and manufacture all types of TURNKEY JAGGERY PLANTS and KHANDASARI by adopting best engineering methods and traditional values.
We use top FOOD GRADE QUALITY RAW MATERIAL for our pans and other system as well. We have our own manufacturing setup which allow us to deliver best quality plants within specified time and best possible price.
We maintain the quality of final JAGGERY to the optimum level specified by government and other food processing standards in our system ensuring good consumer's health.
We appreciate your interest in JAGGERY PLANTS and request your enquiry for the future transactions.
A SUPER HEATER is a device used to convert saturated steam or wet steam into super-heated steam or dry steam.
There are three types of super heaters :
1. RADIANT SUPER HEATER :
Placed directly in the combustion chamber.
2. CONVECTIVE SUPER HEATER :
Located in the path of the hot gases.
3. SEPARATELY FIRED SUPER HEATER :
Totally separated from the boiler.
We at SGM TECH design and manufacture all types of super heaters. We study the client's requirements and design the most optimum solution by adopting best engineering methods.
We use top grade raw materials and modern technology for delivering best quality product in time with best possible price.
We appreciate your interest in Super-Heaters and request the enquiry for the future transactions.
A HOT AIR GENERATOR is a type of heater in which heat is generated by burning fuel and is transferred to the air at ambient temperature which is then heated to the required temperature.
Different fuels include Agro-waste, Wood, Husk, Coal as solid fuels, FO, LDO, HSD, LSHS as liquid fuelsand NG, LPG, CNG, Biogass, Producer Gas as gaseous fules.
We design complete TURNKEY SOLUTIONS for HOT AIR GENERATION SYSTEMS according to customer requirements by adopting best engineering methods for optimized design and efficient working along with safety.
We also have our own manufacturing setup having modern facilities and utilities for fast manufacturing. We use top grade materials and techniques to manufacture the product in least possible time and at best price.
We appreciate your interest in HOT AIR GENERATORS and request the enquiry for the future transactions.
